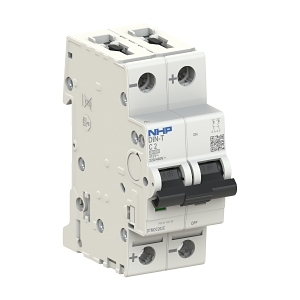

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 2A C Curve
Brand: NHP
SKU: DTMDC202C
Alternatively Known As: DC Miniature Circuit Breaker, MCB, 2 Pole Circuit Breaker, NHP MCB
Technical Specifications
- Rated Current: 2 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 440 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm² (solid core), 0.75-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Ambient Temperature: -25 to 70 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 35mm
- Weight: 0.2 kg
Key Features
- Rated current of 2A with a C curve trip characteristic.
- 10kA short circuit breaking capacity.
- IP40 protection degree.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protection of electrical circuits in DC applications
- Commercial: Use in solar power systems and other DC installations
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Enhances safety in electrical installations, reducing the risk of fire and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 2A C Curve is available now for immediate purchase. Ideal for industrial and commercial DC applications.
