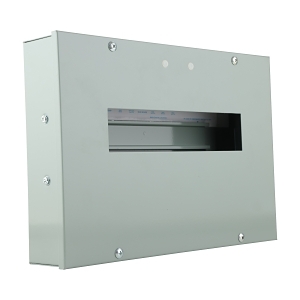

Product Name/Title: NHP DIN-T NLC Metal Loadcentre Surface DinT 12 Way Metal Grey
Brand: NHP
SKU: NLC12S
Alternatively Known As: NHP Loadcentre, Metal Distribution Board, Surface Mounted Loadcentre
Technical Specifications
- Rated Current: 125 A
- Max Rated Operation Voltage: 415 V
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 100 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 12
- DIN Rail: Yes
- Number of Rows: 1
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP30
- Type of Cover: Escutcheon
- Material Thickness Cover: 1 mm
- Mounting Method: Surface mounted (plaster)
- Width in Number of Modular Spacings: 12
- Dimensions (H x L x W): 245mm x 68mm x 343mm
- Weight: 5 kg
Key Features
- Surface mounted design for easy installation.
- 12 outgoing ways for versatile circuit management.
- Constructed from durable steel with IP30 protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T NLC Metal Loadcentre Surface DinT 12 Way Metal Grey is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
