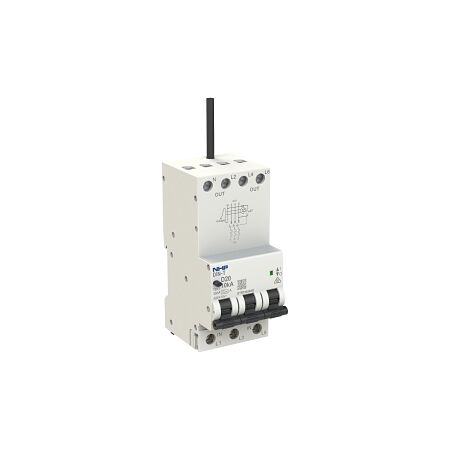

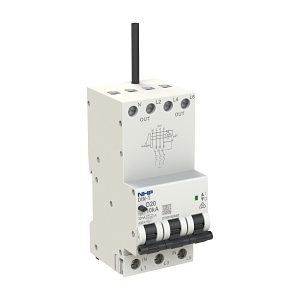

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 32A D Curve 30mA Type A (Longbody)
Brand: NHP
SKU: DTRT3230AD
Alternatively Known As: ['NHP RCBO 32A 3PN', 'NHP 10kA RCBO', 'NHP D Curve RCBO', 'NHP Residual Current Breaker 32A', 'NHP Type A RCBO', 'NHP Longbody RCBO']
Technical Specifications
- Rated current: 32 A
- Rated voltage: 415 V AC
- Rated leakage current: 30 mA
- Frequency: 50/60 Hz
- Short-circuit breaking capacity: 10 kA (AS/NZS 61009)
- Trip curve: D
- Rated impulse withstand voltage (Uimp): 4 kV
- Leakage current type: Type A (AC and pulsating DC)
- Tripping time: 300 ms
- Minimum service voltage: 207 V
- Maximum operating voltage: 457 V
- Rated residual make/break capacity: 6000 A
- Number of poles: 4 (3 protected)
- Electrical life: 10,000 cycles
- Mechanical life: 20,000 cycles
- Type of electric connection: Fork and pin
- Isolator application: Yes
- Rated insulation voltage (Ui): 500 V
- Mounting method: DIN rail
- Degree of protection: IP40
- Connectable conductor cross-section (solid core): 1-25 mm²
- Connectable conductor cross-section (multi-wired): 1-16 mm²
- Disconnection characteristic: Undelayed
- Operating temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.55 kg
Key Features
- Combined residual current device and circuit breaker (RCBO) for comprehensive protection
- 10kA short-circuit breaking capacity for robust safety
- 3 pole and neutral (3PN) configuration
- D curve tripping characteristic for high inrush current applications
- 30mA Type A residual current protection for AC and pulsating DC faults
- DIN rail mountable for easy installation
- Longbody design for enhanced wiring space
- IP40 degree of protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Protection of three-phase circuits in factories, warehouses, and large buildings
- Suitable for use in switchboards requiring high short-circuit protection and residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Long mechanical and electrical life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial switchboards requiring high-level circuit and residual current protection.
