DTRTN40100A
BRAND: NHP

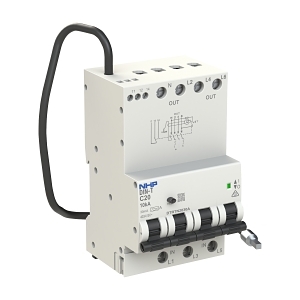

NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Switched Neutral 40A C Curve 100mA Type A


$805.20 List price: $1,069.20
+

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Switched Neutral 40A C Curve 100mA Type A

Brand: NHP

SKU: DTRTN40100A

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 40 A
  • Rated Voltage: 415 V
  • Frequency: 50/60 Hz
  • Rated Impulse Withstand Voltage: 4 kV
  • Tripping Time: 300 ms
  • Degree of Protection: IP40
  • Operating Temperature: -5 to 55 °C
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Dimensions (H x L x W): 117.5mm x 77.1mm x 72mm
  • Weight: 0.64 kg
Key Features
  • 10 kA short circuit breaking capacity
  • Rated leakage current of 100 mA
  • C curve tripping characteristic for general applications
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small commercial buildings
  • Commercial: Retail and office spaces requiring electrical safety
Standards & Compliance
  • Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO is available now for immediate purchase, ideal for enhancing electrical safety in various applications.

DTRTN40100A-AU-RCBO-10kA-4P-SN-C-Curve-Datasheet.pdf (DTRTN40100A-AU-RCBO-10kA-4P-SN-C-Curve-Datasheet.pdf, 207 Kb) [Download]
