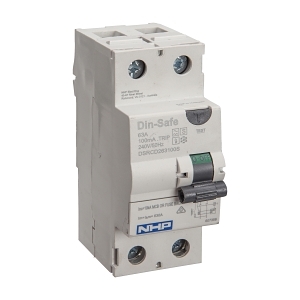

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 63A 100mA Type S
Brand: NHP
SKU: DSRCD263100S
Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker
Technical Specifications
- Number of Poles: 2
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Rated Leakage Current: 100 mA
- Min Service Voltage: 117 V
- Max Rated Operation Voltage: 265 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Fault Current: 10000 A
- Electrical Life: 10000 cycles
- Degree of Protection: IP20
- Connectable Conductor Cross Section: 50-50 mm²
- Mechanical Life: 20000 cycles
- Operating Temperature: 55 °C
- Ambient Temperature: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.25 kg
Key Features
- 1 Pole and Neutral configuration for effective leakage current protection.
- Rated current of 63A and leakage current of 100mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 63A 100mA Type S is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
