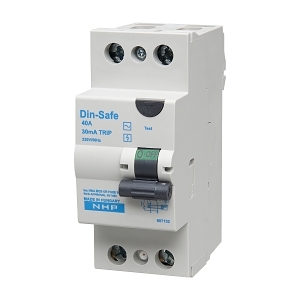

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 40A 30mA Type F AEG Brand FPF
Brand: NHP
SKU: DSRCD24030F
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type F RCCB
Technical Specifications
- Number of Poles: 2
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 40 A
- Leakage Current Type: F
- Rated Leakage Current: 30 mA
- Min Service Voltage: 117 V
- Max Rated Operation Voltage: 415 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Fault Current: 10000 A
- Short Time Delayed Tripping: Yes
- Electrical Life at Un in Service Cycles: 10000 cycles
- Rated Voltage: 230 V
- Short Circuit Breaking Capacity: 1 kA
- Surge Current Capacity: 4 kA
- Degree of Protection: IP20
- Connectable Conductor Cross Section (Solid Core): 50-50 mm²
- Connectable Conductor Cross Section (Multi-Wired): 0-25 mm²
- Operating Temperature: 55 °C
- Ambient Temperature During Operating: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.37 kg
Key Features
- 1 Pole plus Neutral configuration for effective leakage current protection.
- Rated current of 40A and leakage current of 30mA for safety.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 40A 30mA Type F is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
