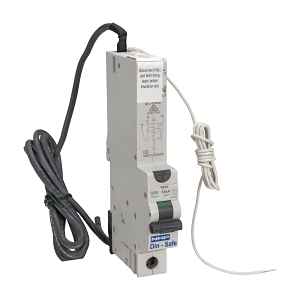

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 20A 1Pole and N D Curve 30mA Type A
Brand: NHP
SKU: DSRCBH2030AD
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation in DIN rail systems.
- Rated current of 20A and leakage current of 30mA for effective protection.
- 10kA short circuit breaking capacity ensures safety during overloads.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
