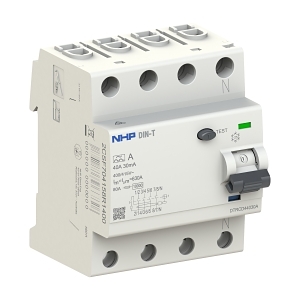

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 300mA Type S
Brand: NHP
SKU: DTRCD463300S
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type S RCCB
Technical Specifications
- Number of Poles: 4
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Rated Leakage Current: 300 mA
- Min Service Voltage: 230 V
- Max Rated Operation Voltage: 456 V
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Fault Current: 10000 A
- Surge Current Capacity: 5 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-25 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-16 mm²
- Operating Temperature: 70 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 85mm x 75mm x 70mm
- Weight: 0.38 kg
Key Features
- 4 poles with switched neutral for enhanced safety.
- Rated current of 63A and leakage current of 300mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 300mA Type S is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
