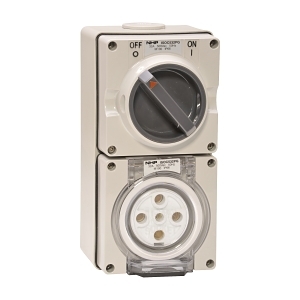

Product Name/Title: NHP ISO Switched Socket Outlet, 5 Round Pins 32A 500V AC, with Base, GY
Brand: NHP
SKU: ISOC532PG
Alternatively Known As: NHP Switched Socket, 32A Socket Outlet, ISO Socket Outlet
Technical Specifications
- Nominal Voltage: 500 V
- Rated Current: 32 A
- Number of Phases: 3
- Number of Switching Poles: 3
- With Neutral Conductor Contact: Yes
- With Switch: Yes
- M Rating: M100
- Material: Plastic
- Type of Cover: Hinged lid
- Number of Active Pins (Round): 5
- With Base: Yes
- Degree of Protection (IP): IP66
- Conductor Cross Section (Solid/Solid Stranded): 4-16 mm²
- Dimensions (H x L x W): 198mm x 63mm x 101mm
- Weight: 1.5 kg
Key Features
- Rated for 32A and 500V AC, suitable for heavy-duty applications.
- IP66 rated for protection against dust and water ingress.
- Hinged lid cover for added safety and protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, workshops, and heavy machinery
- Commercial: Large retail spaces and warehouses
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust electrical connections.
