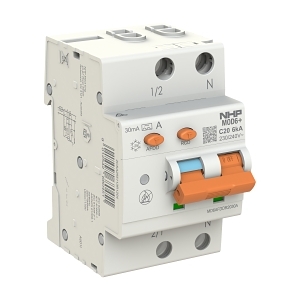

Product Name/Title: NHP MOD6+ Arc Fault Detection Device AFDD & RCBO 6kA 1 Pole and Switched N 16A C Curve 30mA Type A
Brand: NHP
SKU: MD6AFDDR1630A
Alternatively Known As: AFDD, RCBO, Arc Fault Detector, Residual Current Device
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 170 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Mounting Method: DIN rail
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 85mm x 75mm x 52.5mm
- Weight: 0.24 kg
Key Features
- Combines Arc Fault Detection Device (AFDD) and Residual Current Breaker with Overcurrent (RCBO) in one unit.
- Rated for 16A with a 30mA leakage current.
- 6kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any installation requiring arc fault detection and residual current protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ Arc Fault Detection Device AFDD & RCBO is available now for immediate purchase. Ideal for residential and commercial applications requiring enhanced electrical safety.
