IBD213PN
BRAND: NHP

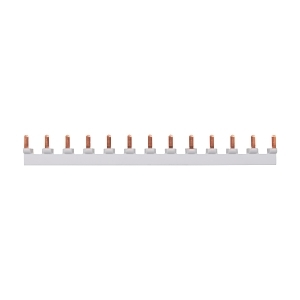

NHP MOD6 Miniature Circuit Breaker Busbar Comb 13 1PN Pin Type 80A End Feed 100A Centre Feed Grey


$24.20 List price: $32.10
+

Product Name/Title: NHP MOD6 Miniature Circuit Breaker Busbar Comb 13 1PN Pin Type 80A End Feed 100A Centre Feed Grey

Brand: NHP

SKU: IBD213PN

Alternatively Known As: NHP Busbar Comb, Miniature Circuit Breaker Busbar, MOD6 MCB

Technical Specifications
  • Rated current in busbar comb centre feed: 100 A
  • Rated current in busbar comb end feed: 80 A
  • Type of electric connection: Pin
  • Number of phases: 2
  • Number of poles: 13
  • Rated permanent current (Iu): 63 A
  • Conditioned rated short circuit current (Iq): 25 kA
  • Suitable for number of devices: 13
  • Insulated: Yes
  • Module width: 9 mm
  • Cross section: 14 mm²
  • Width in number of modular spacings: 12
  • Dimensions (H x L x W): 26mm x 100mm x 9mm
  • Weight: 1.0 kg
Key Features
  • Busbar Comb Pin Type design for efficient electrical connections.
  • Rated for 100A in centre feed and 80A in end feed configurations.
  • Insulated for safety and reliability.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Residential: Electrical installations requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Efficient design reduces energy loss and enhances system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Miniature Circuit Breaker Busbar Comb is available now for immediate purchase, ideal for electrical installations requiring reliable circuit protection.

IBD213PN-AU-Busbar-Comb-Pin-Type-Datasheet.pdf (IBD213PN-AU-Busbar-Comb-Pin-Type-Datasheet.pdf, 153 Kb) [Download]
