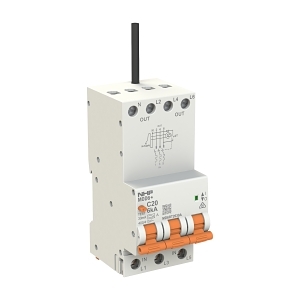

Product Name/Title: NHP MOD6+ RCBO 6kA 3 Pole and N 50A C Curve 30mA Type A (Longbody)
Brand: NHP
SKU: MD6RT5030A
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Tripping Time: 300 ms
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP40
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Mounting Method: DIN rail
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.55 kg
Key Features
- Rated current of 50 A and rated voltage of 415 V.
- 6 kA short circuit breaking capacity.
- 30 mA leakage current protection.
- C curve tripping characteristic for general applications.
- IP40 protection degree.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small commercial buildings
- Commercial: Retail and office spaces requiring electrical safety devices
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ RCBO 6kA 3 Pole and N 50A C Curve 30mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
