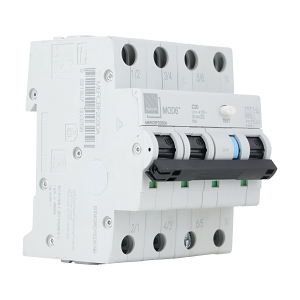

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 32A 3PN C Curve 30mA Type A 72mm

$174.50 List price: $231.70

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 32A 3PN C Curve 30mA Type A 72mm

Brand: NHP

SKU: M6RCBF3230A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 32 A
Rated Voltage: 415 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 195 V
Max Operating Voltage: 440 V
Rated Residual Make Break Capacity: 4500 A
Number of Poles: 4
Electrical Life: 10,000 cycles
Type of Electric Connection: Pin
Isolator Application: Yes
Rated Insulation Voltage: 500 V
Concurrently Switching Neutral Conductor: Yes
Mounting Method: DIN rail (top hat rail) 35 mm
Number of Protected Poles: 3
Mechanical Life: 20,000 cycles
Max Shock Duration: 13 ms
Max Shock Acceleration: 30 g
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 75mm x 80mm x 72mm
Weight: 0.48 kg

Key Features

6kA short circuit breaking capacity
30mA residual current rating
C curve tripping characteristic
DIN rail mounting for easy installation
IP2X degree of protection

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Designed to enhance electrical safety and reduce the risk of electrical fires.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable

M6RCBF3230A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf (M6RCBF3230A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf, 469 Kb) [Download]
