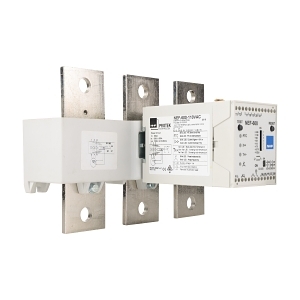

Product Name/Title: NHP Motor Protection Relays Overload Electronic 123.8 to 600A 110VAC Control
Brand: NHP
SKU: NEF600110VAC
Alternatively Known As: Motor Overload Relay, Electronic Overload Relay
- Adjustable Current Range: 123.8-600 A
- Release Class: Adjustable
- Max Rated Operation Voltage: 1000 V
- Auxiliary Contacts: 1 Normally Closed, 1 Change Over
- Voltage Type for Actuating: AC
- Control Supply Voltage: 110 V at AC 50 Hz
- Mounting Method: Separate positioning
- Dimensions (H x L x W): 156mm x 143.5mm x 246mm
- Weight: 2.5 kg
- Adjustable current range from 123.8 to 600 A.
- Automatic and push-button reset functions.
- Includes one normally closed and one change-over auxiliary contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
- Complies with AS/NZS 3000 for electrical installation safety.
- Enhances energy efficiency by preventing motor overloads and failures.
1 year warranty against manufacturing defects.
The NHP Motor Protection Relays Overload Electronic 123.8 to 600A 110VAC Control is available now for immediate purchase. Ideal for industrial and commercial applications.
