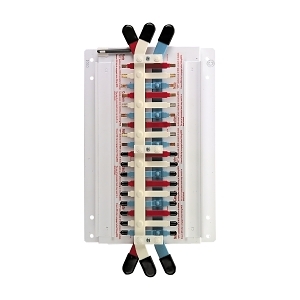

Product Name/Title: NHP POWERMAX Busbar Chassis - General CD DIN-T 250A 18 Way 3Pole Universal
Brand: NHP
SKU: CD218183U
Alternatively Known As: Busbar Distribution Board, Power Distribution Busbar, Electrical Busbar System
- Rated Current: 250 A
- Number of Poles: 18
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.2 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 9 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Dipped housing
- Degree of Protection: IP20
- Dimensions (H x L x W): 206mm x 300mm x 200mm
- Weight: 5 kg
- 250A rated current for robust power handling.
- 18-way configuration for versatile connections.
- 3-phase input for efficient power distribution.
- IP20 degree of protection for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for various electrical distribution systems
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX Busbar Chassis - General CD DIN-T 250A 18 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.
