CD284183U
BRAND: NHP

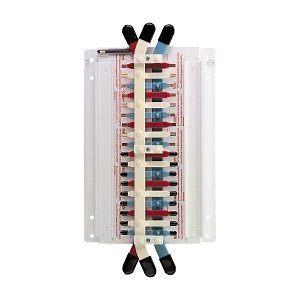

NHP POWERMAX Busbar Chassis - General CD DIN-T 250A 84 Way 3 Pole Universal Feed


$2,198.20 List price: $2,918.90
+

Product Name/Title: NHP POWERMAX Busbar Chassis - General CD DIN-T 250A 84 Way 3 Pole Universal Feed

Brand: NHP

SKU: CD284183U

Alternatively Known As: Busbar Distribution Board, Power Distribution Busbar, Electrical Busbar System

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 84
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.2 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 9 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Dipped housing
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 800mm x 300mm x 400mm
  • Weight: 10 kg
Key Features
  • 250A rated current for robust power handling.
  • 84 poles with 18mm pitch for flexible configuration.
  • 3-phase input for efficient power distribution.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in large buildings
  • General: Suitable for various electrical distribution needs
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX Busbar Chassis is available now for immediate purchase, ideal for industrial and commercial power distribution needs.

CD284183U-AU-Chassis-CD-DINT-250A-3-Pole-Universal-Feed-Datasheet.pdf (CD284183U-AU-Chassis-CD-DINT-250A-3-Pole-Universal-Feed-Datasheet.pdf, 773 Kb) [Download]
