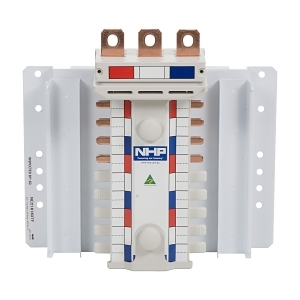

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 12 Way 3Pole Top Feed
Brand: NHP
SKU: NC212183TF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 134mm x 82mm x 300mm
- Weight: 5 kg
Key Features
- 250A rated current for robust power distribution.
- 12-way configuration for versatile connections.
- 3-phase input for efficient power management.
- Encapsulated material housing for durability.
- IP20 protection rating for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 12 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
