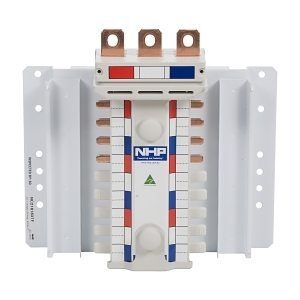

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 96 Way 3Pole Top Feed
Brand: NHP
SKU: NC296183TF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar
- Rated Current: 250 A
- Number of Poles: 96
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Degree of Protection: IP20
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Dimensions (H x L x W): 890mm x 500mm x 300mm
- Weight: 10 kg
- 250A rated current with 96 poles for extensive power distribution.
- 3-phase input for efficient energy management.
- Encapsulated material housing for enhanced durability.
- Professional installation by a qualified electrician is required for safety and compliance.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 96 Way 3Pole Top Feed is available now for immediate purchase, ideal for industrial power distribution needs.
