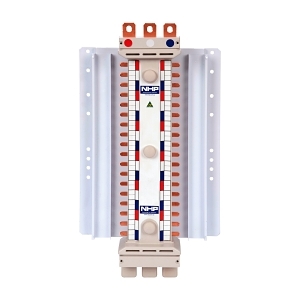

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 42 Way 42 Way 3Pole Universal
Brand: NHP
SKU: NC2S4242183U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar
- Rated Current: 250 A
- Number of Poles: 84
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 782mm x 400mm x 300mm
- Weight: 10 kg
- 250A rated current for high-capacity applications.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
- Complies with AS/NZS 3000 for electrical installation safety.
- Efficient power distribution reduces energy loss and enhances system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 42 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
