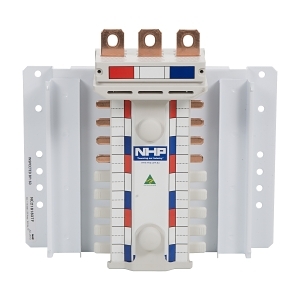

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 3Pole Top Feed
Brand: NHP
SKU: NC424183TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
- Rated Current: 400 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 400mm x 100mm
- Weight: 5 kg
- 400A rated current for high power applications.
- 24 poles for extensive circuit management.
- 3-phase input for balanced power distribution.
- IP20 protection rating for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
- Complies with AS/NZS 3000 for electrical installations.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution needs.
