NC472183TF
BRAND: NHP

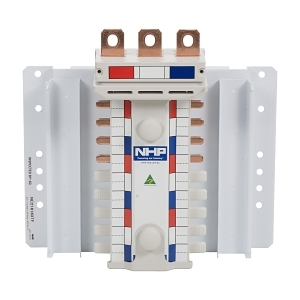

NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 3Pole Top Feed


$1,830.00 List price: $2,429.90
+

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 3Pole Top Feed

Brand: NHP

SKU: NC472183TF

Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 72
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 30 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 25 kA
  • Short Time Withstand Current (ICW) 1 sec: 13 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 674mm x 82mm x 300mm
  • Weight: 10 kg
Key Features
  • Rated current of 400A with a 3-pole configuration.
  • Designed for top feed connections.
  • Encapsulated material housing for enhanced durability.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.

NC472183TF-AU-Chassis-NC-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf (NC472183TF-AU-Chassis-NC-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf, 345 Kb) [Download]
