NC472184TF
BRAND: NHP

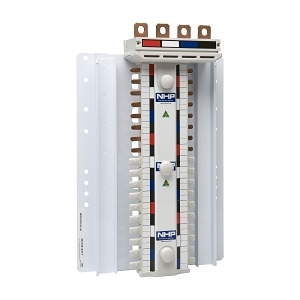

NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed RNWNBN

$3,404.40 List price: $4,520.60
+ −
30 Days Return Delivery Options

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed RNWNBN

Brand: NHP

SKU: NC472184TF

Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 72
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 13 kA
  • Short Time Withstand Current (0.3 sec): 25 kA
  • Short Time Withstand Current (0.1 sec): 30 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 674mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 400A rated current for high power applications.
  • 72 poles with 18mm pitch for versatile installation.
  • Encapsulated material housing for enhanced durability.
  • IP20 degree of protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Construction: Suitable for use in electrical installations requiring high current capacity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

NC472184TF-AU-Chassis-NC-DINT-400A-4-Pole-Top-Feed-Datasheet.pdf (NC472184TF-AU-Chassis-NC-DINT-400A-4-Pole-Top-Feed-Datasheet.pdf, 238 Kb) [Download]
