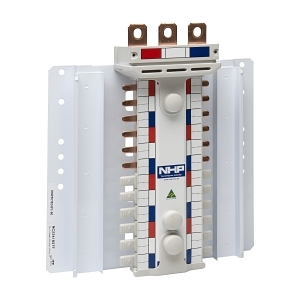

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A 6 Way 27mm 3Pole Top Feed
Brand: NHP
SKU: NCH46273TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 6
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 107mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 400A for high power applications.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A 6 Way 27mm 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
