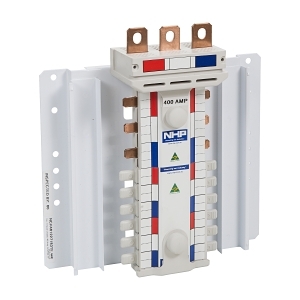

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 60 Way 18mm 3Pole Top Feed
Brand: NHP
SKU: NCH4126027183TF
Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 72
- Number of Poles (18mm Pitch): 60
- Number of Poles (27mm Pitch): 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 728mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- 400A rated current for high power applications.
- Hybrid design with 12 ways at 27mm pitch and 60 ways at 18mm pitch.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase, ideal for industrial and commercial power distribution applications.
