NCH461227183TF
BRAND: NHP

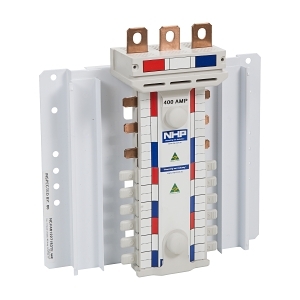

NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 12 Way 18mm 3Pole Top Feed


$992.90 List price: $1,318.50
+

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 12 Way 18mm 3Pole Top Feed

Brand: NHP

SKU: NCH461227183TF

Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar, DIN-T Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 18
  • Number of Poles (18mm pitch): 12
  • Number of Poles (27mm pitch): 6
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW 0.1 sec): 30 kA
  • Short Time Withstand Current (ICW 0.3 sec): 25 kA
  • Short Time Withstand Current (ICW 1 sec): 13 kA
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 215mm x 300mm x 100mm
  • Weight: 5 kg
Key Features
  • 400A rated current for robust power handling.
  • Hybrid assembly arrangement with 18mm and 27mm pitch.
  • 3-phase input for efficient power distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power distribution, reducing energy loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and electrical applications.

NCH461227183TF-AU-Chassis-NCH-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf (NCH461227183TF-AU-Chassis-NCH-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf, 267 Kb) [Download]
