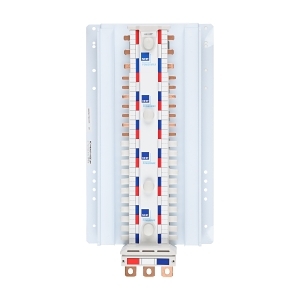

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 36 Way 18mm 3Pole Bottom Feed
Brand: NHP
SKU: NCH463627183BF
Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar System
- Rated Current: 400 A
- Number of Poles: 42
- Number of Poles (18mm pitch): 36
- Number of Poles (27mm pitch): 6
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Degree of Protection: IP20
- Material Housing: Encapsulated material
- Dimensions (H x L x W): 431mm x 300mm x 200mm
- Weight: 10 kg
- Hybrid design with 18mm and 27mm pitch for versatile applications.
- Rated for 400A with a 3-phase input.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system reliability.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NCH Busbar Chassis is available now for immediate purchase, ideal for industrial and commercial power distribution needs.
