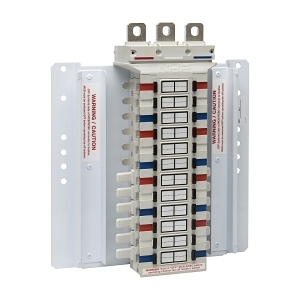

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 3Pole Top Feed
Brand: NHP
SKU: GB224183TF
Alternatively Known As: NHP Busbar, Isolation Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 248mm x 82mm x 300mm
- Weight: 5 kg
Key Features
- 250A rated current for high power applications.
- 3-phase input with 24 poles for versatile connections.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
