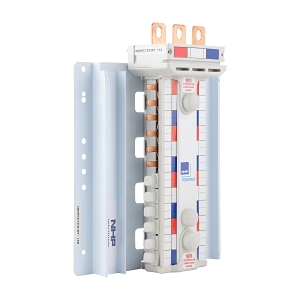

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 24 Way 3Pole Top Feed
Brand: NHP
SKU: M6NC224183TF
Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 82mm x 300mm
- Weight: 5 kg
Key Features
- 250A rated current for high power applications.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX MOD6 Busbar Chassis 250A 24 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
