M6NC260183TF
BRAND: NHP

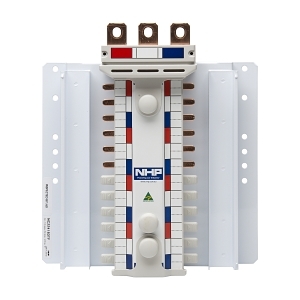

NHP POWERMAX MOD6 Busbar Chassis 250A 60 Way 3Pole Top Feed


$921.60 List price: $1,223.70
+

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 60 Way 3Pole Top Feed

Brand: NHP

SKU: M6NC260183TF

Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 60
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 25 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 566mm x 82mm x 300mm
  • Weight: 5 kg
Key Features
  • 250A rated current with 60 poles for efficient power distribution.
  • 3-phase input for enhanced performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss and enhances system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX MOD6 Busbar Chassis 250A 60 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

M6NC260183TF-AU-M6NC-Chassis-250A--3-Pole-Top-Feed-Datasheet.pdf (M6NC260183TF-AU-M6NC-Chassis-250A--3-Pole-Top-Feed-Datasheet.pdf, 417 Kb) [Download]
