M6NC284183TF
BRAND: NHP

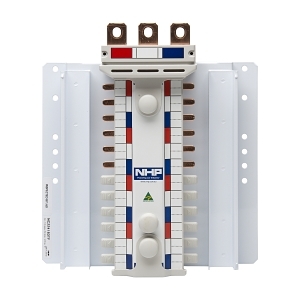

NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Top Feed


$1,586.60 List price: $2,106.90
+

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Top Feed

Brand: NHP

SKU: M6NC284183TF

Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar, Power Distribution Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 84
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 25 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 782mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current with 84 poles for extensive power distribution.
  • 3-phase input for efficient energy management.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection rating suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.

M6NC284183TF-AU-M6NC-Chassis-250A--3-Pole-Top-Feed-Datasheet.pdf (M6NC284183TF-AU-M6NC-Chassis-250A--3-Pole-Top-Feed-Datasheet.pdf, 417 Kb) [Download]
