RJ45-24CAT6-SP
BRAND: CERTECH

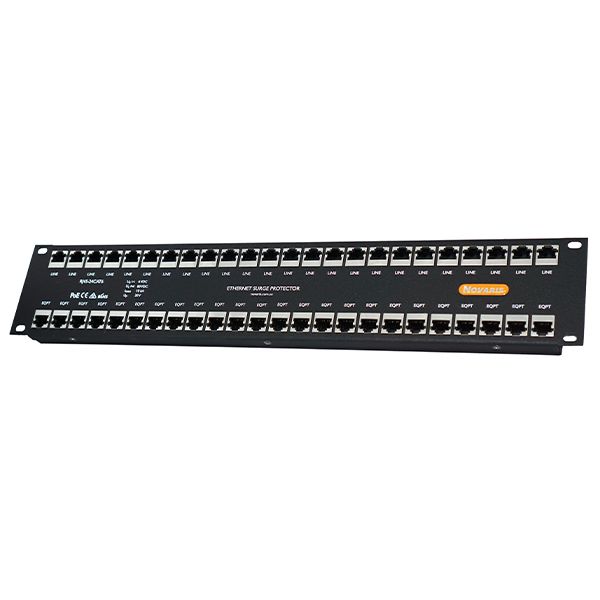

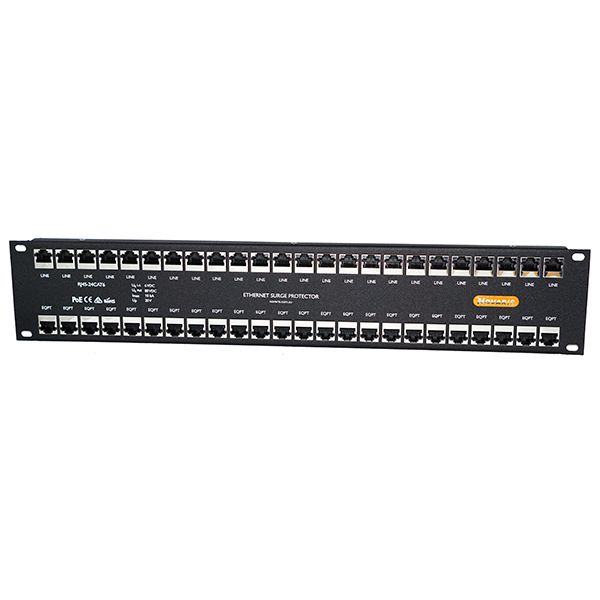

Novaris Cat6 Surge Protector - 24 Port


$2,337.00 List price: $3,038.10
+

Product Name/Title: Novaris Cat6 Surge Protector - 24 Port

Brand: Certech

SKU: RJ45-24CAT6-SP

Alternatively Known As: Ethernet Surge Protector, RJ45 Surge Protector, Network Surge Protector

Technical Specifications
  • 10kA Gas Discharge Tube per signal pair
  • Silicon based secondary protection element
  • Compatible with UTP and STP cabling
  • Supports 4 pair power up to 160W
  • Dimensions (H x L x W): 100mm x 200mm x 300mm
  • Weight: 1.5 kg
Key Features
  • 10kA Front End Protection & Low Impedance Secondary Protection
  • Compatible with PoE, PoE+, and High Power PoE
  • Handles up to 1 A of current per signal pair at up to 80VDC
  • Supports Gigabit network speeds up to 1000BaseT
  • Utilizes shield pass through connectors for uninterrupted network spans
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Residential: Home networking
  • Commercial: Office networks, data centers
  • General: Any environment requiring surge protection for Ethernet systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Protects network equipment, reducing electronic waste and prolonging device lifespan.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Novaris Cat6 Surge Protector - 24 Port is available now for immediate purchase. Ideal for structured cabling applications in residential and commercial environments.

Specification Sheet (rj45-24cat6-sp_u.pdf, 547 Kb) [Download]
