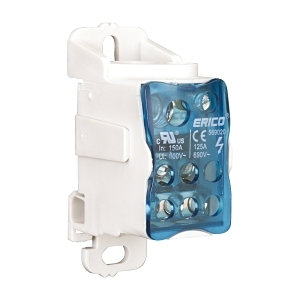

Product Name/Title: nVent ERIFLEX Distribution Blocks 125A Cu In 1 x 10 to 35mm Out 1 x 6 to 16mm and 6 x 2.5 to 16mm
Brand: NHP
SKU: 569020
Alternatively Known As: Distribution Block, Terminal Block, Power Distribution Block
- Number of Poles: 1
- Rated Insulation Voltage: 1000 V
- Short Time Withstand Current: 4.2 kA
- Conductor Material: Aluminium/Copper
- Conductor Cross Section: 16-2.5 mm²
- Dimensions (H x L x W): 77mm x 46mm x 29mm
- Weight: 0.5 kg
- Rated for a maximum current of 125 A.
- Compatible with conductor sizes from 10 to 35 mm² for input and 6 to 16 mm² for output.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in electrical installations
- Commercial: Suitable for various electrical applications
- Complies with AS/NZS 3000 for electrical installations.
- Efficient design reduces energy loss in electrical systems.
1 year warranty against manufacturing defects.
The nVent ERIFLEX Distribution Blocks 125A is available now for immediate purchase, ideal for industrial and commercial electrical applications.
