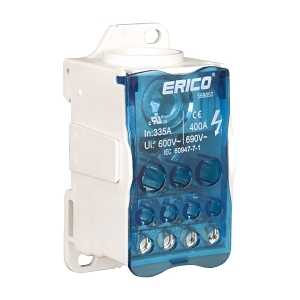

Product Name/Title: nVent ERIFLEX Distribution Blocks 400A Cu In 1x95 to 185mm Out 2x6to35mm 5x2.5to16mm 4x2.5to10mm
Brand: NHP
SKU: 569050
Alternatively Known As: Distribution Block, Terminal Block, Power Distribution Block
- Number of Poles: 1
- Rated Insulation Voltage (Ui): 1000 V
- Short Time Withstand Current (Icw 1 sec): 24.5 kA
- Max Rated Current: 400 A
- Conductor Material: Aluminium/Copper
- Conductor Cross Section: 2.5-35 mm²
- Dimensions (H x L x W): 96mm x 50mm x 49mm
- Weight: 1.5 kg
- Rated for a maximum current of 400A.
- Short-time withstand current of 24.5 kA.
- Compatible with conductor cross sections from 2.5 to 35 mm².
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in electrical installations
- Commercial: Suitable for various electrical applications
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system reliability.
1 year warranty against manufacturing defects.
The nVent ERIFLEX Distribution Blocks 400A is available now for immediate purchase, ideal for industrial and commercial power distribution needs.
