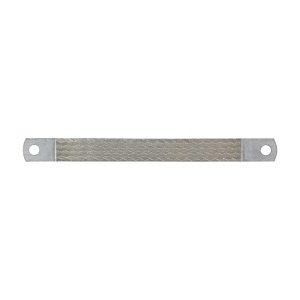

Product Name/Title: nVent ERIFLEX Earth Braids 120A 16mm2 Length 150mm Hole Diameter 6.5mm
Brand: NHP
SKU: 563550
Alternatively Known As: Earth Braid, Earthing Strip, Grounding Braid
Technical Specifications
- Rated Current: 120 A
- Conductor Material: Copper
- Braided: Yes
- Shape of Conductor: Flat
- Conductor Surface: Tinned
- Conductor Category: Class 5 = flexible
- Nominal Cross Section Conductor: 16 mm²
- Hole Diameter Connection: 6.5 mm
- Max Operating Temperature: 105 °C
- Insulated: No
- With Connecting Lugs: Yes
- Connection Lugs Drilled: Yes
- With Cable Lugs: Yes
- Dimensions (H x L x W): 1.5mm x 150mm x 15mm
- Weight: 0.04 kg
Key Features
- Rated current of 120 A for effective earthing.
- Flat braided design for flexibility and ease of installation.
- Tinned copper conductor for enhanced corrosion resistance.
- Includes connecting lugs for secure connections.
Professional Installation Requirements
- Professional installation is recommended to ensure proper earthing and safety.
Applications
- Electrical installations requiring reliable earthing solutions.
- Industrial applications for grounding and bonding.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Earth Braids 120A 16mm2 Length 150mm Hole Diameter 6.5mm is available now for immediate purchase, ideal for electrical installations.
