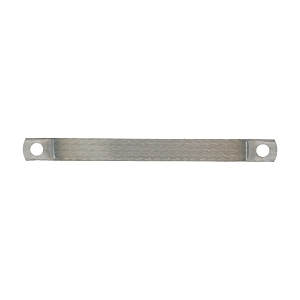

Product Name/Title: nVent ERIFLEX Earth Braids 120A 16mm2 Length 150mm Hole Diameter 8.5mm
Brand: NHP
SKU: 556630
Alternatively Known As: Earth Braid, Earthing Strip, Grounding Braid
Technical Specifications
- Rated Current: 120 A
- Conductor Material: Copper
- Braided: Yes
- Shape of Conductor: Flat
- Conductor Surface: Tinned
- Conductor Category: Class 5 = flexible
- Nominal Cross Section Conductor: 16 mm²
- Hole Diameter Connection: 8.5 mm
- Max Operating Temperature: 105 °C
- Insulated: No
- With Connecting Lugs: Yes
- Connection Lugs Drilled: Yes
- With Cable Lugs: Yes
- Dimensions (H x L x W): 1.5mm x 150mm x 15mm
- Weight: 0.02 kg
Key Features
- Rated current of 120 A for reliable performance.
- Flat braided design for flexibility and ease of installation.
- Tinned copper conductor for enhanced corrosion resistance.
- Includes connecting lugs for secure connections.
Professional Installation Requirements
- Professional installation is recommended to ensure proper grounding and safety.
Applications
- Electrical installations requiring effective earthing solutions.
- Industrial applications for grounding and bonding.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Earth Braids 120A 16mm2 Length 150mm Hole Diameter 8.5mm is available now for immediate purchase, ideal for electrical and industrial applications.
