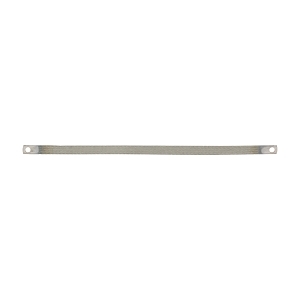

Product Name/Title: nVent ERIFLEX Earth Braids 75A 10mm2 Length 300mm Hole Diameter 6.5mm
Brand: NHP
SKU: 556610
Alternatively Known As: Earth Braid, Earthing Strip, Flexible Earthing Conductor
Technical Specifications
- Rated Current: 75 A
- Conductor Material: Copper
- Braided: Yes
- Shape of Conductor: Flat
- Conductor Surface: Tinned
- Conductor Category: Class 5 = flexible
- Nominal Cross Section Conductor: 10 mm²
- Hole Diameter Connection: 6.5 mm
- Max Operating Temperature: 105 °C
- Insulated: No
- With Connecting Lugs: Yes
- Connection Lugs Drilled: Yes
- With Cable Lugs: Yes
- Dimensions (H x L x W): n/a mm x 300mm x 11mm
- Weight: 0.03 kg
Key Features
- Rated current of 75 A for effective earthing.
- Flexible Class 5 copper conductor for easy installation.
- Tinned surface for enhanced corrosion resistance.
- Includes connecting lugs for secure connections.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Electrical installations requiring reliable earthing solutions.
Standards & Compliance
- Complies with relevant Australian standards for earthing solutions.
Environmental Benefits
- Contributes to safety and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The nVent ERIFLEX Earth Braids 75A 10mm2 Length 300mm is available now for immediate purchase. Ideal for electrical installations requiring reliable earthing solutions.
