561136
BRAND: NHP

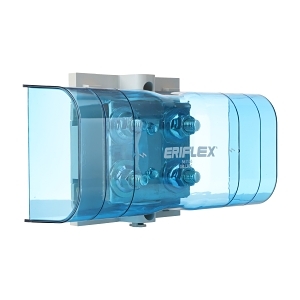

nVent ERIFLEX High Current Terminal 1250A In and Out 2 x M10 Lug 25 to 300mm Busbar 20 to 40mm


$315.20 List price: $418.60
+

Product Name/Title: nVent ERIFLEX High Current Terminal 1250A In and Out 2 x M10 Lug 25 to 300mm Busbar 20 to 40mm

Brand: NHP

SKU: 561136

Alternatively Known As: High Current Terminal, Busbar Terminal, Power Distribution Terminal

Technical Specifications
  • Number of poles: 1
  • Rated insulation voltage: 1000 V
  • Short time withstand current: 57.6 kA
  • Conductor material: Aluminium/copper
  • Dimensions (H x L x W): 205.7mm x 75mm x 115mm
  • Weight: 2.5 kg
Key Features
  • Rated for a maximum current of 1250A.
  • Short time withstand current of 57.6 kA for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring high current capacity
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power distribution, reducing energy loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent ERIFLEX High Current Terminal 1250A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

561136-AU-High-Current-Terminal-Datasheet.pdf (561136-AU-High-Current-Terminal-Datasheet.pdf, 255 Kb) [Download]
