561151
BRAND: NHP

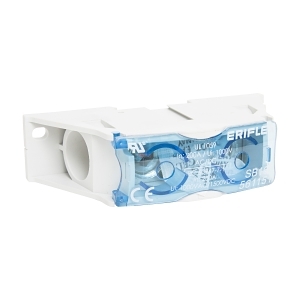

nVent ERIFLEX High Current Terminal 250A In and Out 1 x 35 to 70mm


$119.00 List price: $158.00
+

Product Name/Title: nVent ERIFLEX High Current Terminal 250A In and Out 1 x 35 to 70mm

Brand: NHP

SKU: 561151

Alternatively Known As: High Current Terminal, Terminal Block, Power Terminal

Technical Specifications
  • Number of poles: 1
  • Rated insulation voltage (Ui): 1000 V
  • Short time withstand current (Icw) for 1 sec: 14.4 kA
  • Conductor material: Aluminium/copper
  • Dimensions (H x L x W): 111mm x 55mm x 27.7mm
  • Weight: 0.5 kg
Key Features
  • Rated for a maximum current of 250 A.
  • Compatible with conductor cross sections of 35-70 mm².
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring high current capacity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent ERIFLEX High Current Terminal 250A In and Out is available now for immediate purchase, ideal for high current electrical applications.

561151-AU-High-Current-Terminal-Datasheet.pdf (561151-AU-High-Current-Terminal-Datasheet.pdf, 223 Kb) [Download]
