SCHNAP Logo

Making Trade Life Easy!
Trade Discount 25%
561132
BRAND: NHP

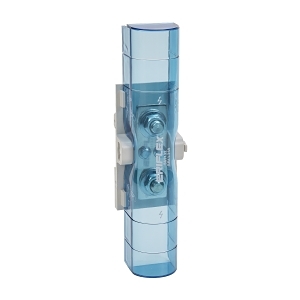

nVent ERIFLEX High Current Terminal 290A In and Out 1 x M10 Lug 10 to 120mm Busbar 20 to 24mm


$123.20 List price: $163.60
+

Product Name/Title: nVent ERIFLEX High Current Terminal 290A In and Out 1 x M10 Lug 10 to 120mm Busbar 20 to 24mm

Brand: NHP

SKU: 561132

Alternatively Known As: High Current Terminal, Busbar Terminal, Electrical Terminal Block

Technical Specifications
  • Number of poles: 1
  • Rated insulation voltage (Ui): 1000 V
  • Short time withstand current (Icw) 1 sec: 14.4 kA
  • Max rated current: 290 A
  • Conductor material: Aluminium/copper
  • Dimensions (H x L x W): 206mm x 65mm x 52mm
  • Weight: 1.5 kg
Key Features
  • Rated for a maximum current of 290 A.
  • Short time withstand current of 14.4 kA for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring high current capacity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent ERIFLEX High Current Terminal 290A is available now for immediate purchase, ideal for high current electrical applications.

561132-AU-High-Current-Terminal-Datasheet.pdf (561132-AU-High-Current-Terminal-Datasheet.pdf, 207 Kb) [Download]
