BRAND: NHP

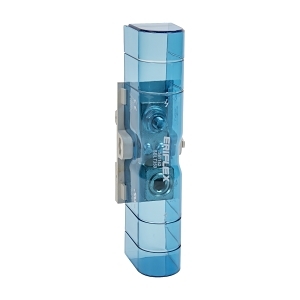

nVent ERIFLEX High Current Terminal 500A In 1xM10 Lug 10to185mm Busbar 20to24mm Out 1x35 to 185mm


$248.20 List price: $329.60
+

Product Name/Title: nVent ERIFLEX High Current Terminal 500A In 1xM10 Lug 10to185mm Busbar 20to24mm Out 1x35 to 185mm

Brand: NHP

SKU: 561142

Alternatively Known As: High Current Terminal, Busbar Terminal, 500A Terminal Block

Technical Specifications
  • Number of Poles: 1
  • Rated Insulation Voltage (Ui): 1000 V
  • Short Time Withstand Current (Icw 1 sec): 22.2 kA
  • Conductor Material: Aluminium/Copper
  • Dimensions (H x L x W): 206mm x 65mm x 52mm
  • Weight: 1.5 kg
Key Features
  • Rated for a maximum current of 500A.
  • Compatible with conductors from 10mm to 185mm.
  • Designed for busbar applications with a 20 to 24mm output.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring high current capacity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient design reduces energy loss in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent ERIFLEX High Current Terminal 500A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

561142-AU-High-Current-Terminal-Datasheet.pdf (561142-AU-High-Current-Terminal-Datasheet.pdf, 219 Kb) [Download]
