561134
BRAND: NHP

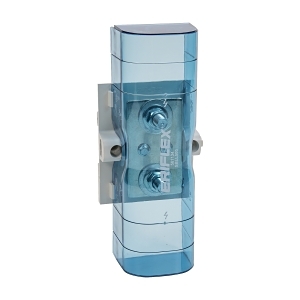

nVent ERIFLEX High Current Terminal 750A In and Out 1 x M10 Lug 16 to 400mm Busbar 20 to 50mm


$184.80 List price: $245.40
+

Product Name/Title: nVent ERIFLEX High Current Terminal 750A In and Out 1 x M10 Lug 16 to 400mm Busbar 20 to 50mm

Brand: NHP

SKU: 561134

Alternatively Known As: High Current Terminal, Busbar Terminal, Electrical Terminal Block

Technical Specifications
  • Number of poles: 1
  • Rated insulation voltage (Ui): 1000 V
  • Short time withstand current (Icw) for 1 sec: 36 kA
  • Conductor material: Aluminium/copper
  • Conductor cross section (flexible fine strand with cable end sleeve): 16-400 mm²
  • Conductor cross section (solid/solid stranded): 400-16 mm²
  • Dimensions (H x L x W): 206mm x 65mm x 85mm
  • Weight: 1.5 kg
Key Features
  • Rated for a maximum current of 750A.
  • Compatible with conductor cross sections from 16 to 400 mm².
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring high current capacity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient design reduces energy loss in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent ERIFLEX High Current Terminal 750A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

561134-AU-High-Current-Terminal-Datasheet.pdf (561134-AU-High-Current-Terminal-Datasheet.pdf, 245 Kb) [Download]
