MAS0305015R5
BRAND: NHP

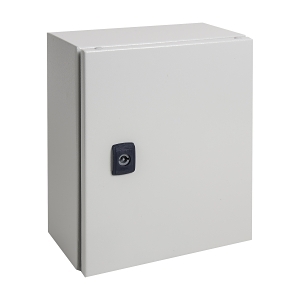

nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 H300 x W500 x D155mm Single Door


$362.00 List price: $480.70
+

Product Name/Title: nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 H300 x W500 x D155mm Single Door

Brand: NHP

SKU: MAS0305015R5

Alternatively Known As: Wall Mount Enclosure, Mild Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Mild steel
  • Surface finishing: Powder coating
  • Enclosure load capacity: 163 kg
  • Door load capacity: 28.5 kg
  • Material thickness: 1.2 mm
  • Degree of protection: IP66
  • Impact strength: IK10
  • Type of lock: DIN 1/4 turn
  • Number of doors: 1
  • Number of locks: 1
  • Gland plates included: Yes
  • With mounting plate: Yes
  • Mounting plate depth adjustable: Yes
  • Dimensions (H x L x W): 300mm x 155mm x 500mm
  • Weight: 8.82 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Constructed from durable mild steel with powder coating for enhanced corrosion resistance.
  • Includes adjustable mounting plate for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for housing electrical and electronic equipment.
  • Commercial: Ideal for outdoor installations requiring protection from dust and water.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 is available now for immediate purchase, ideal for industrial and commercial applications.

MAS0305015R5-AU-Enclosure-Datasheet.pdf (MAS0305015R5-AU-Enclosure-Datasheet.pdf, 272 Kb) [Download]
