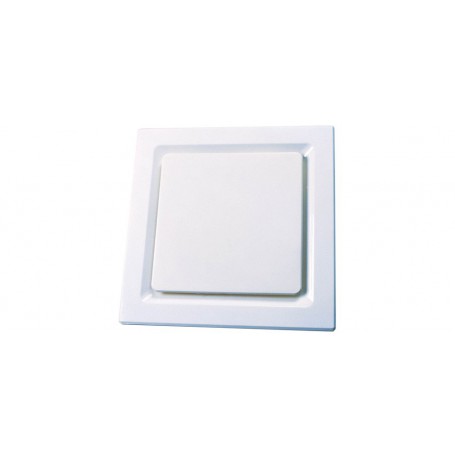

Product Name/Title: Ovation 200 White - OVAWUSQ
Brand: Ventair
SKU: OVAWUSQ
Alternatively Known As: Ducted Exhaust Fan, Ventilation Fan, Ceiling Exhaust Fan
Technical Specifications
- Exhaust Motor Power: 45W
- Air Delivery: 270m³/H
- Noise Level: 43dB(A)
- Ball bearing motor: Yes
- Side outlet duct size: Ø125mm
- IP Rating: IP24
- Power Input: 220-240V~50Hz
- Dimensions (H x L x W): 270mm x 200mm x 270mm
- Weight: 2.0 kg
Key Features
- Improved motor design for higher airflow
- Easy clean and removable grille
- Built-in draft stopper
- AC plug and lead included
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with local regulations.
Applications
- Residential: Bathrooms, kitchens, laundry rooms
- Commercial: Offices, restaurants, public washrooms
Standards & Compliance
- Complies with AS/NZS 60335 for safety and performance standards.
Environmental Benefits
- Energy-efficient motor design to reduce electricity consumption.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Ventair Ovation 200 White ducted exhaust fan is available now for immediate purchase. Ideal for enhancing ventilation in residential and commercial spaces.
