Home/Electrical/Lighting/Light Fittings/Panels And Troffers/PIR Sensor for HIBTRI2 (Optional) Dim level (0-30%) Hold time (5S-10M) Plug In

Trade Discount 23%

SKU: HIBSENSOR

BRAND: CLA Lighting

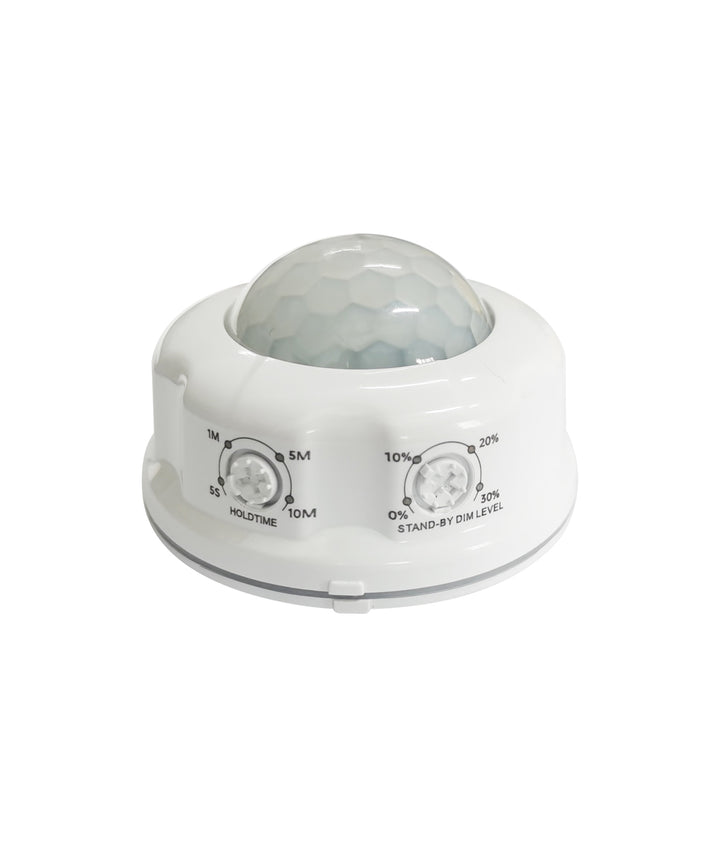

PIR Sensor for HIBTRI2 (Optional) Dim level (0-30%) Hold time (5S-10M) Plug In

$41.50 List price: $54.00

+ −

30 Days Return Delivery Options

Description

Product Name/Title: PIR Sensor for HIBTRI2 (Optional) Dim level (0-30%) Hold time (5S-10M) Plug In

Brand: CLA Lighting

SKU: HIBSENSOR

Alternatively Known As: PIR Motion Sensor, HIBTRI2 Sensor, Plug In PIR Sensor

Technical Specifications

Wattage: <0.5W
Input voltage range: 120-277V AC 50Hz
Power factor: 0.95
Detection angle: 120 degree
Time delay: 5s / 1min / 5min / 10min
Ambient temperature: -20 to 60 degree
IP rating: IP65
Dimensions (H x L x W): 100mm x 100mm x 100mm
Weight: 0.5 kg

Key Features

Input voltage range: 120-277V AC 50Hz
Constant current LED driver inbuilt
Housing & Faceplate: powder coated Aluminium
Heatsink: Aluminium
Diffuser: Clear PC
Tri-CCT (3000K/ 4000K / 5700K) in one fitting
Power factor: 0.95
Flex & plug: 1.2m
Ambient temperature: -20 to 50°C
Not suitable for dimming
Suitable for 2-way switching
Suitable for use with motion & microwave sensors
Plug in PIR sensor for HIBTRI2 available (sold separately)
IP rating: IP65
Wattage: <0.5W
Installation height: recommended up to 12m
Detection angle: 120 degree
Time delay: 5s / 1min / 5min / 10min
Ambient temperature: -20 to 60 degree
Stand by dim level setup: 0%, 10%, 20%, 30%
UV resistant: Yes
Ambient light: day and night

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any indoor location requiring motion detection lighting

Standards & Compliance

Complies with AS/NZS 3000 for electrical safety standards.

Environmental Benefits

Energy-efficient design reduces power consumption and enhances safety.

Warranty Information

3 years replacement warranty.

Available Now

The PIR Sensor for HIBTRI2 is available now for immediate purchase. Ideal for residential and commercial spaces, enhancing energy efficiency and safety.
