PSCE10K
BRAND: CERTECH

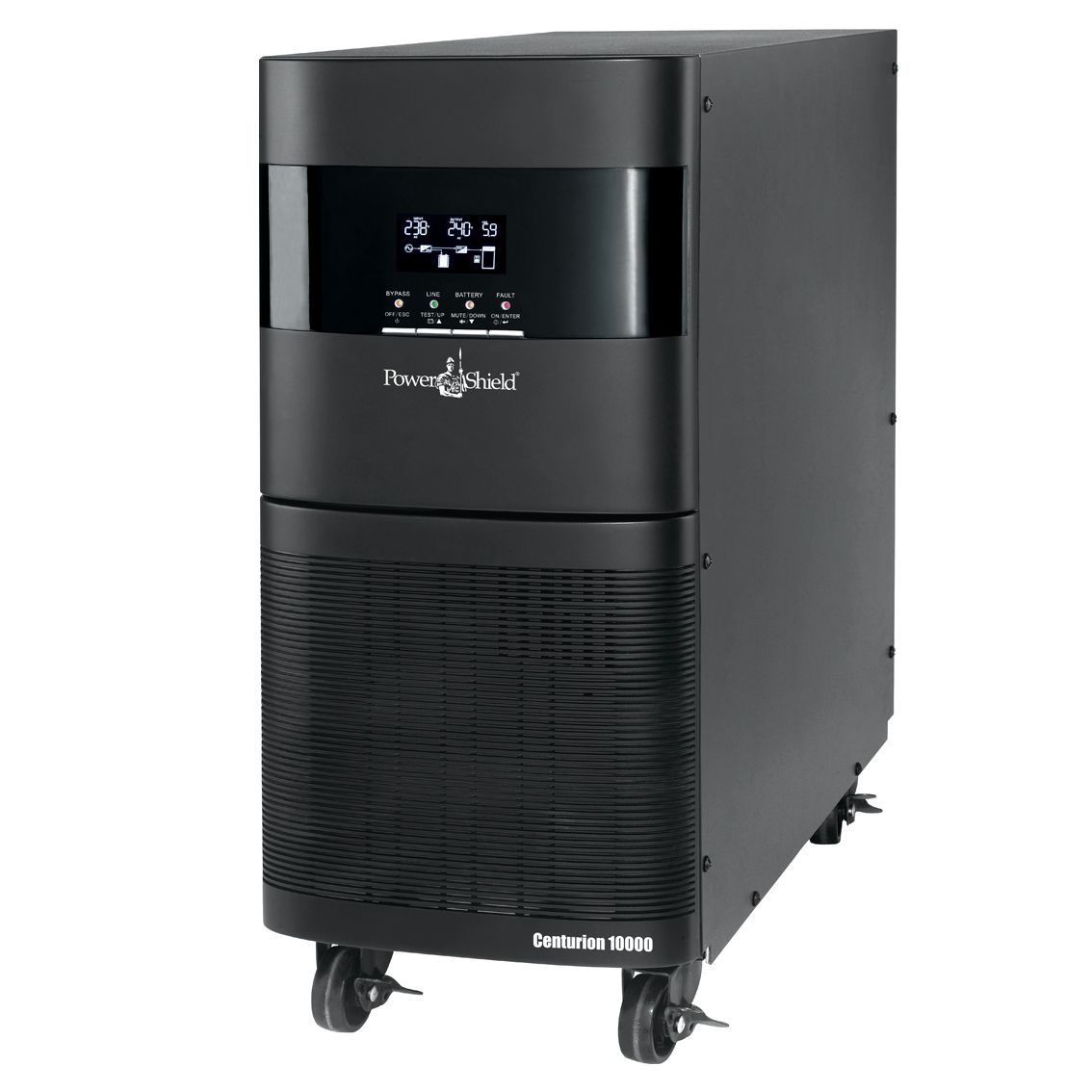

PowerShield Centurion Tower 10KVA True Online Double Conversion UPS


$12,532.60 List price: $16,292.40

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: PowerShield Centurion Tower 10KVA True Online Double Conversion UPS

Brand: Certech

SKU: PSCE10K

Alternatively Known As: 10KVA UPS, True Online UPS, PowerShield Centurion UPS

Technical Specifications
  • VA: 10000
  • Watts: 9000
  • Outlets: 6
  • Topology: True online double conversion
  • UPS Form Factor: Tower
  • Phase: Single phase
  • Battery Type: 12V 19AH
  • Expandable: Yes
  • Number of Batteries: 20
  • Power Factor: 0.9
  • Charger (Amps): 1
  • Dimensions (H x L x W): 576mm x 592mm x 250mm
  • Weight: 81 kg
Key Features
  • True Online Double Conversion
  • Wide input voltage range
  • Input power factor correction 0.98
  • 50Hz/60Hz frequency converter mode
  • Programmable power outlets
  • Emergency power off function (EPO)
  • Optional Eco-mode operation for energy saving
  • Generator compatible
  • Backup time for all models is easily extended by simply plugging additional battery banks
  • Battery banks are available with internal charger to enable fast recharge even with large battery banks

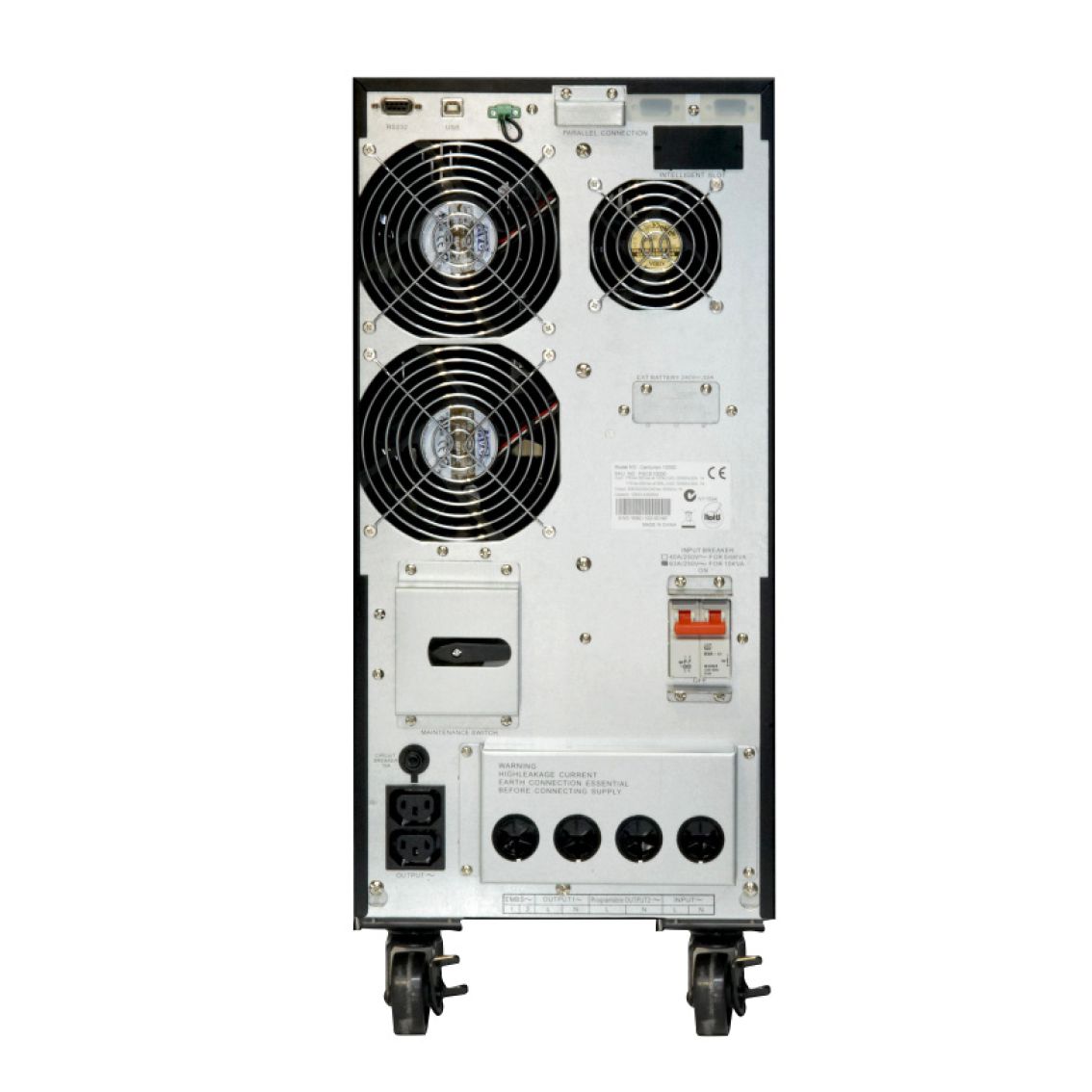

  • USB, RS232, SNMP and AS400 multiple communications available
  • Extendable maintenance bypass available for all models
  • N+X parallel redundancy available for 6K/10K model
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Medical equipment
  • Internet routers
  • Servers
  • Critical power applications
  • Remote areas (over 30 kms outside of city grid)
  • Light to heavy industrial equipment
  • Areas where generators are present
  • Applications requiring remote connectivity
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-saving Eco-mode operation reduces overall power consumption.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The PowerShield Centurion Tower 10KVA True Online Double Conversion UPS is available now for immediate purchase. Ideal for protecting sensitive devices in various applications.

Specification Sheet (psce10k_u.pdf, 1,332 Kb) [Download]
