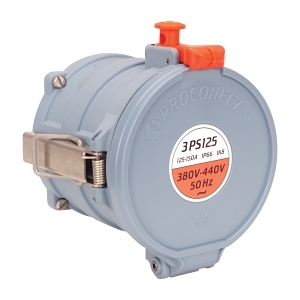

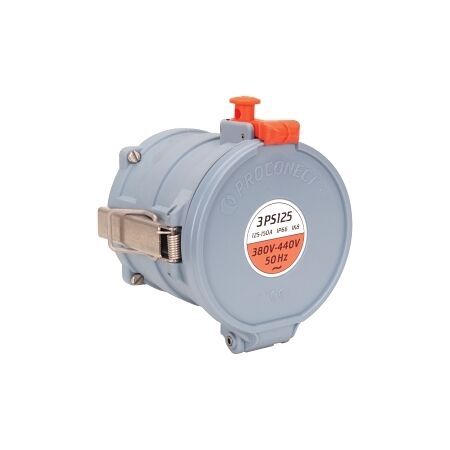

Product Name/Title: PROCONECT 3PS125 Socket Outlet, 3P+N+E, 150A (AC23 100A) 440V AC
Brand: NHP
SKU: 3PS9D3NE01
Alternatively Known As: High Current Socket Outlet, 3P+N+E Socket, 150A Socket
Technical Specifications
- Amperage: 150 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 6 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 146mm x 100mm
- Weight: 1.5 kg
Key Features
- High amperage rating of 150A for demanding applications.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: High power applications requiring robust connections
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS125 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power connections.
