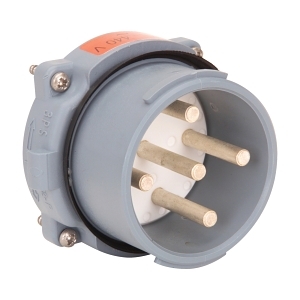

Product Name/Title: PROCONECT 3PS32 Appliance Inlet, 3P+E+2p, 50A (AC23 32A) 440V AC
Brand: NHP
SKU: 3PS32A30E01P
Alternatively Known As: 3 Phase Appliance Inlet, 50A Inlet, Industrial Power Inlet
Technical Specifications
- Amperage: 50 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E+2P
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless Steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 2.72 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.23 kg
Key Features
- 3P+E+2P contact configuration for versatile connections.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS32 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connections.
