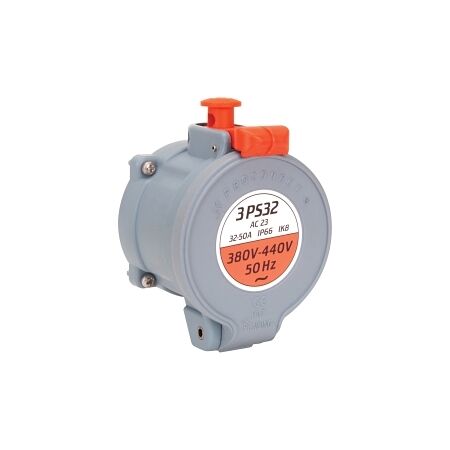

Product Name/Title: PROCONECT 3PS32 Socket Outlet, 3P+E+2p, 50A (AC23 32A) 440V AC
Brand: NHP
SKU: 3PS32D30E01P
Alternatively Known As: High Current Socket Outlet, 50A Socket, Industrial Socket Outlet
Technical Specifications
- Amperage: 50 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E+2P
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless Steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 2.72 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 93.5mm x 100mm
- Weight: 0.38 kg
Key Features
- 3P+E+2P configuration for versatile connections.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Large retail spaces, warehouses
- General: Any high-power electrical installation requiring robust socket outlets
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS32 Socket Outlet is available now for immediate purchase, ideal for high-power industrial and commercial applications.
