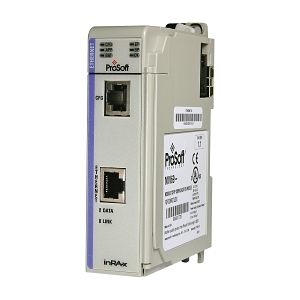

Product Name/Title: ProSoft CompactLogix InRack Modbus TCP/IP Enhanced Communication Module
Brand: NHP
SKU: MVI69EMBTCP
Alternatively Known As: Modbus TCP/IP Communication Module, CompactLogix Communication Module
- Number of HW Interfaces (Industrial Ethernet): 1
- Number of HW Interfaces (RS-232): 1
- Max Shock Acceleration: 30 g
- Max Vibration Acceleration: 5 m/s²
- Max Vibration Frequency Operational: 150 Hz
- Ambient Temperature During Operating: 0-60 °C
- Storage Temperature: -40-85 °C
- Max Ambient Humidity Non-Condensing: 95%
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.0 kg
- Supports Modbus TCP/IP protocol for enhanced communication.
- Single RS-232 interface for serial communication.
- Designed for use in CompactLogix systems.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation systems
- Factory floor communication
- Data acquisition and control
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Designed to operate in a wide temperature range, reducing the need for additional heating or cooling systems.
1 year warranty against manufacturing defects.
The ProSoft CompactLogix InRack Modbus TCP/IP Enhanced Communication Module is available now for immediate purchase, ideal for industrial automation applications.
