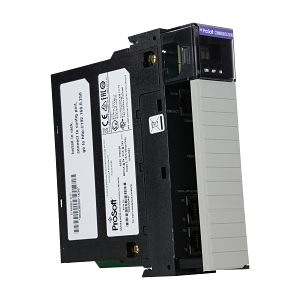

Product Name/Title: ProSoft ControlLogix InRack Modbus Master/Slave Enhanced Network Interface Module
Brand: NHP
SKU: MVI56EMCM
Alternatively Known As: ControlLogix Modbus Module, ProSoft Modbus Interface, InRack Modbus Master/Slave Module
Technical Specifications
- Number of HW Interfaces (Industrial Ethernet): 1
- Number of HW Interfaces (RS-232): 1
- Number of HW Interfaces (RS-422): 1
- Number of HW Interfaces (RS-485): 1
- Network Connection: 10/100 Mbit
- Max Shock Acceleration: 30 g
- Max Vibration Acceleration: 5 m/s²
- Max Vibration Frequency Operational: 150 Hz
- Ambient Temperature During Operating: 0-60 °C
- Storage Temperature: -40-85 °C
- Max Ambient Humidity Non-Condensing: 95 %
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 1.5 kg
Key Features
- Supports Modbus protocol for communication
- Multiple hardware interfaces including RS-232, RS-422, and RS-485
- 10/100 Mbit network connection
- Designed for ambient temperatures from 0-60 °C
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control systems requiring Modbus communication
- Integration with ControlLogix platforms
Standards & Compliance
- Complies with relevant Australian standards for industrial communication modules.
Environmental Benefits
- Designed to operate in a wide temperature range, reducing the need for additional climate control.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The ProSoft ControlLogix InRack Modbus Master/Slave Enhanced Network Interface Module is available now for immediate purchase. Ideal for industrial automation applications.
